Outdoor Fixed Installation Screen

Outdoor Fixed Installation Screen，fixed led display,outdoor LED display,outdoor led screen,outdoor led display screen,led advertising board,LED wall,LED display,led screen,led display screen.

Product No.: BL-OFI

Online Inquiry Email Us

Details

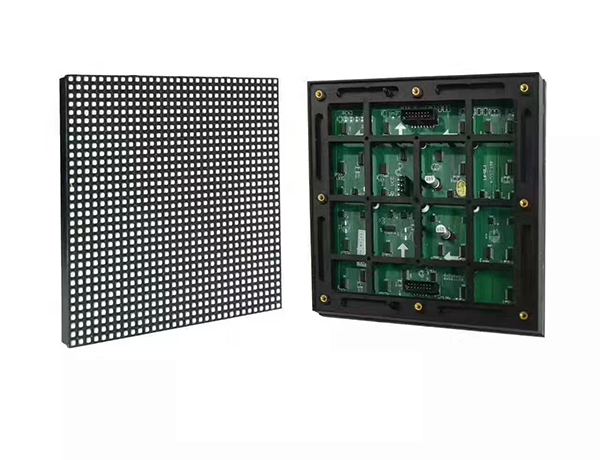

Module

High quality designed with exceptional waterproof level,and excellent high protective grades and weather resistance;

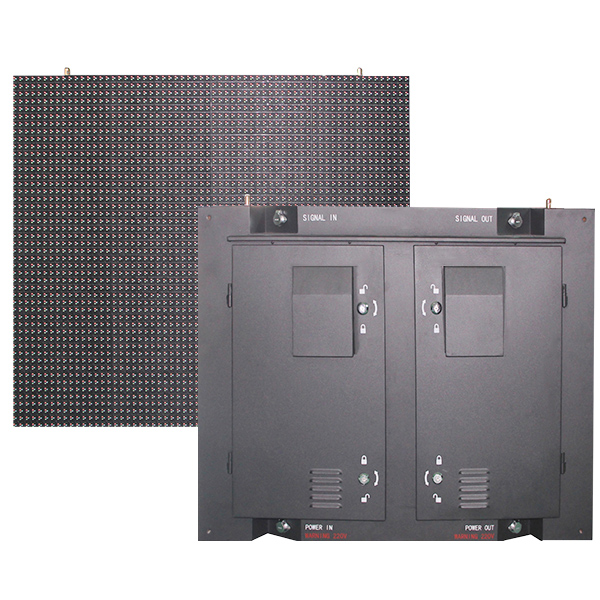

LED cabinet

1.lighter and thinner，front and rear maintenance available；

2.Optional iron or aluminum cabinet available for fixed installation;

3.Waterproof and dustproof of the cabinet;

Screen

1.Vivid video performance andexpressive watching experience without white or dark lines;

2.High refresh rate more than 2000 Hz;

3.Frameless LED screen design contribute to completely seamless outstanding image quality,easily catch attraction of the passers;

4.Easily repairable by substitution components with the spare parts provided by BOLEY;

5.Waterproof cabinet design with protection level up to IP 66.

Design advantage

1.The screen can be designed to meet different clients'diversified needs and requirements.

2.Front installation and maintenance is available by change the design of the cabinets;

3.A lot of LED module specification can be selected according to the screen installation environment;

Installation

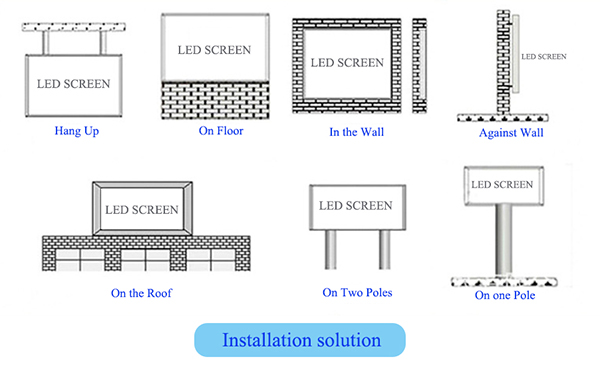

Support multiple installation methods: on the poles, against the wall, or on the floor;

Applications

Dinner Halls Lobbis / Transportation/Hospital/Shipping Malls/Conference Room/Show Room/Auditoriums/TV Studios/Fashion Stores/Electronic Store / Supper Markets/ Stages/ Shows and Events/ Concerts.

Specification

Pixel Pitch	3.91mm	4.81mm	6mm	10mm
Pixel Configuration	SMD3-in-1	SMD3-in-1	SMD3-in-1	SMD3-in-1
Environment	Indoor /Outdoor	Indoor/Outdoor	Outdoor	Outdoor
Pixel Density	65536 dots/m2	43222 dots/m2	27,777 dots/m2	10,000 dots/m2
Module Resolution	64x64 dots	52x52 dots	32x32 dots	16x16 dots
Module Size	250x250 mm	250x250 mm	192x192 mm	160x160 mm
Cabinet Resolution	128x256 dots	104x208 dots	160x128 dots	96x96 dots
Cabinet Size	1000x1000 mm	1000x1000 mm	960x768 mm	960x960 mm
Cabinet material	Iron/aluminum front service service	Iron/aluminum front service service	Iron/aluminum front service service	Iron/aluminum front service service
Viewing Distance	>3 m	>4 m	＞8m	＞10m
Viewing Angle	H140°V140°	H140°V140°	H120°V120°	H120°V120°
Refresh Rate	≥2,000 Hz	≥2,000 Hz	≥2,000 Hz	≥2,000 Hz
Maximum Power Consumption	<1000 W/m2	<800 W/m2	680 W/㎡	640 W/㎡
Drive Mode	Constant current 1/16	Constant current 1/13	Constant current	Constant current
Brightness	Indoor screen ≥1,500 nits;	Indoor screen ≥1,500 nits;	Outdoor screen≥ 6,000nits	Outdoor screen≥5,000nits
Brightness	Outdoor screen ≥5,500 nits;	Outdoor screen ≥5,500 nits;	Outdoor screen≥ 6,000nits	Outdoor screen≥5,000nits
Input Voltage	AC100-240V/50-60Hz
Life Span	100,000 hours
Working Temperature	-20°C to 60°C
Working Humidity	10%RHto 90%RH
Gray Scale	14 bit
IP Grade	Indoor : IP31 Outdoor:IP66

Package: By wood cases.
