Glossy Screen
Module
Package:wood cases or flight cases
P2.5 and P3 high resolution and quality modules designed with vivid image and excellent high protective model.

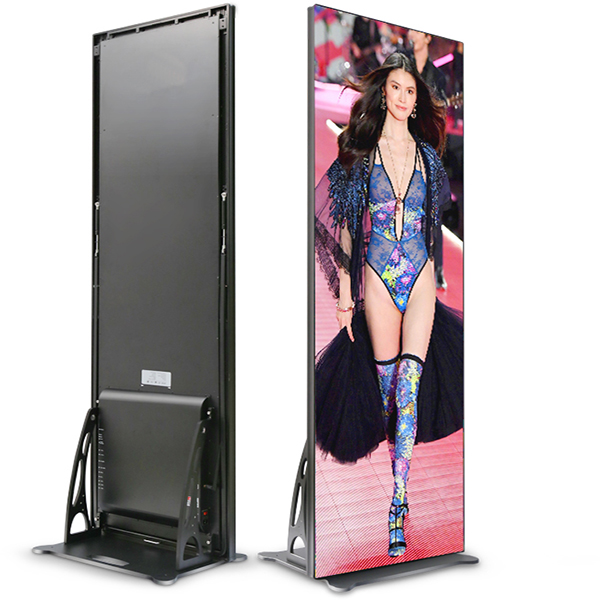

LED cabinet
1.Lighter and thinner,the weight of the cabinet is less than 35 kgs, and the thickness of the cabinet is less than 35mm.
2.Front maintenance available;
3.Optional size can be designed according to the module size;
Screen
1.Vivid video performance andexpressive watching experience without white or dark lines;
2.High refresh rate more than 2000 Hz;
3.Frameless LED screen design contribute to completely seamless outstanding image quality, which can easily catch attraction of the passers;
4.Easily Repairable by substitution components with the spare parts provided by BOLEY;
Design advantage
1.The screen can be designed to meet different clients' diversified sizes and requirements.
2.Front installation and maintenance is available;
3.The cabinet can be changed the design to meet the needs of the installation environment;
4.Seamless connection between 2 cabinets;
Applications
Dinner Halls Lobbis / Transportation/Hospital/Shipping Malls/Conference Room/Show Room/Auditoriums/TV Studios/Fashion Stores/Electronic Store / Supper Markets/ Stages/ Shows and Events/ Concerts.
Detailed specification
|
Pixel Pitch |
2.5mm |
3mm |
|
Pixel Configuration |
SMD3-in-1 |
SMD3-in-1 |
|
Environment |
Indoor |
Indoor |
|
Module Resolution |
128x64 dots |
64x64 dots |
|
Module Size |
320x160 mm |
192x192mm |
|
Screen Resolution |
256x640=163840 pixels |
192x640=122880 pixels |
|
Screen Size |
640x1600 mm |
576x1920mm |
|
Cabinet Material |
Aluminum |
Aluminum |
|
Viewing Distance |
>2 m |
>2 m |
|
Viewing Angle |
H140°V140° |
H140°V140° |
|
Refresh Rate |
≥2,000 Hz |
≥2,000 Hz |
|
Average Power Consumption |
<250 W |
<250 W |
|
Drive Mode |
Constant current 1/16 |
Constant current 1/16 |
|
Brightness |
Indoor screen ≥1,500 nits; |
Indoor screen ≥1,500 nits; |
|
Input Voltage |
AC100-240V/50-60Hz |
AC100-240V/50-60Hz |
|
Life Span |
100,000 hours |
100,000 hours |
|
Working Temperature |
-20°C to 60°C |
-20°C to 60°C |
|
Working Humidity |
10%RHto 90%RH |
10%RHto 90%RH |
|
Gray Scale |
14 bit |
14 bit |
|
IP Grade |
IP31 |
IP31 |
Package:wood cases or flight cases
